Horizontal Lathes

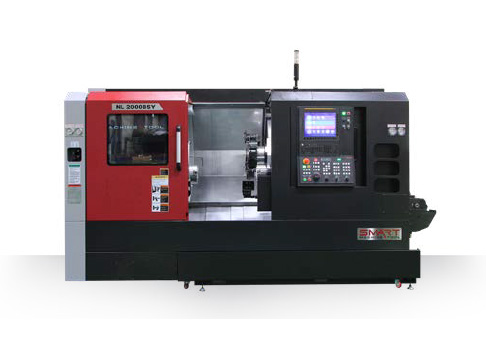

NL 2000 with Y-Axis
Designed by Smart Machine Tool engineers with many years of experience, NL Series turning centers guarantee ultra-high precision, flexible, and reliable machining performance.
- Y-Axis enables complex shape machining capability
- Wide box guideways machined from one-piece casting promote heavy duty cutting
- High spindle power ensures powerful cutting capability
- Built-in sub spindle motor enables fast acceleration/deceleration
- Synchronized control of main and sub spindle for machining flexibility
- High torque servo motor driven tailstock reducing workpiece setup time
- User-friendly operation panel design for efficient machine operation
- Various peripheral equipment and options
NL 2000 Y-Axis SERIES
| DESCRIPTION | NL 2000ASY | NL 2000BSY | NL 2000AY | NL 2000BY | |
|---|---|---|---|---|---|
| Swing Over Bed | mm(inch) | 810 (31.89") | 810 (31.89") | 810 (31.89") | 810 (31.89") |
| Max. Machining Length | mm(inch) | 750 (29.53”) | 735 (28.94”) | 726.5 (28.6”) | 711.5 (28.01”) |
| Main Spindle Chuck | inch | 6 | 8 | 6 | 8 |
| Spindle Speed | rpm | 6,000 | 4,500 | 6,000 | 4,500 |
| Turret Type | - | BMT55 | BMT55 | BMT55 | BMT55 |
| Sub Spindle Chuck | inch | 6 | 8 | - | - |
| Tailstock Tape | - | - | - | MT#5 | MT#5 |
| Travel (X/Z/Y) | mm(inch) | 239/830/110 (9.41/32.7/4.33) | 239/830/110 (9.41/32.7/4.33) | 239/830/110 (9.41/32.7/4.33) | 239/830/110 (9.41/32.7/4.33) |

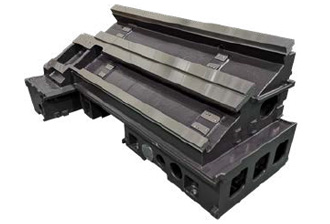

One-piece 30-degree slant bed made out of gray cast iron, which has superb vibration absorption characteristics, provides rigid foundation for all machine components.
Such design endures long-term machining accuracy and consistency.
- Hexahedral design and wide box guideways, machined from one piece casting, promote heavy duty machining.
Induction hardened and precision ground ways ensure accurate machining for extended period of time.
Wide carriage promotes less vibration and allows high precision machining - High Performance Motor

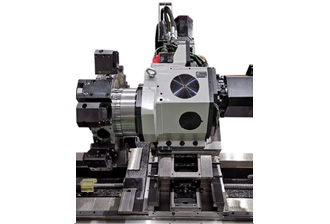

All axis are equipped with high performance feed motor for better travel ability and reducing cycle time.

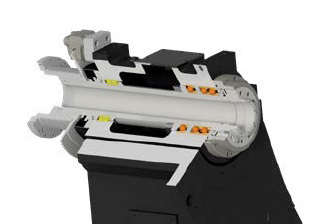

Double row cylindrical roller bearings and angular thrust bearings, ensure high rigidity for heavy cutting and excellent surface finishes.

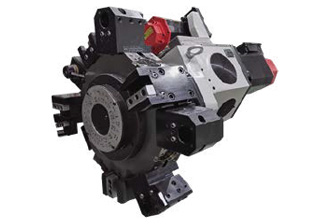

Large diameter 3-piece Curvic coupling for excellence rigidity and extended tool life.
High torque AC servo motor driven ensure fast indexing time, excellence position and repeatability.

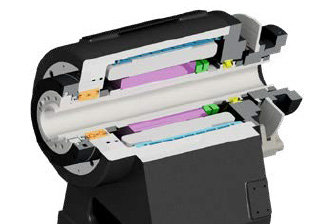

Equipped with built-in motor and oil cooling unit as standard to minimize thermal displacement and to ensure maximum machining accuracy even during a long period of machining.
