Horizontal Lathes

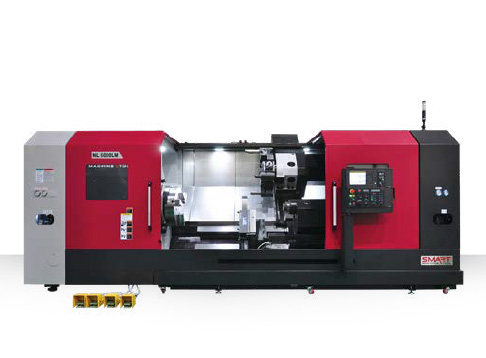

NL 6000 SERIES
Designed by Smart Machine Tool engineers with many years of experience, NL Series turning centers guarantee ultra-high precision, flexible, and reliable machining performance.
- 45° slanted torque tube design bed and wide slideway for high rigidity machining
- Wide box guideways machined from one-piece casting promote heavy duty cutting
- High torque AC servo motor ensures fast indexing time and repeatability
- Excellence rapid traverse rate
- High spindle power ensures powerful cutting capability
- User-friendly operation panel design for efficient machine operation
- Various peripheral equipment and options
NL 6000 SERIES
| DESCRIPTION | NL 6000S | 6000SM | NL 6000 | 6000M | NL 6000L | 6000LM | NL 6000XL | 6000XLM | |
|---|---|---|---|---|---|
| Swing Over Bed | mm(inch) | 1,030(40.55) | 1,030(40.55) | 1,030(40.55) | 1,030(40.55) |
| Max. Machining Length | mm(inch) | 750(29.53) | 700(27.56) | 1,550(61.02) | 1,500(59.06) | 2,250(88.58) | 2,200(86.61) | 3,250(127.95) | 3,200(125.98) |
| Chuck Size | inch | 24 | 24 | 24 | 24 |
| Bar Capacity | mm(inch) | 165.5(6.52) | 165.5(6.52) | 165.5(6.52) | 165.5(6.52) |
| Spindle Speed | rpm | 1,200 | 1,200 | 1,200 | 1,200 |
| Motor (Cont./Max) | KW(HP) | 37/55 (50/73) | 37/55 (50/73) | 37/55 (50/73) | 37/55 (50/73) |
| Travel (X/Z/Y) | mm(inch) | 475/800(18.7/31.5) | 475/1,600(18.7/63) | 475/2,300(18.7/90.55) | 475/3,300(18.7/129.92) |
| No. of Tool Station | EA | 12 | 12 | 12 | 12 |

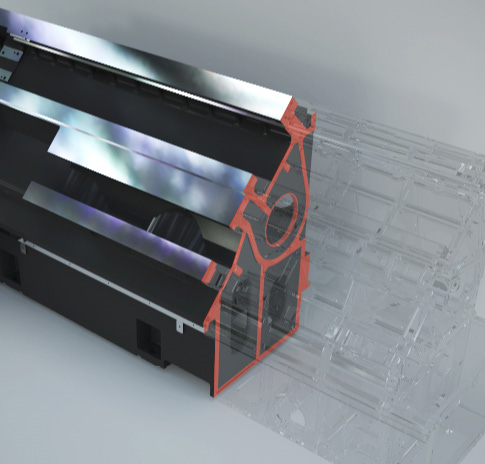

One-piece 45-degree slant bed made out of GC300 high tensile strength gray cast iron, which has superb vibration absorption characteristics, provides rigid foundation for all machine components. Such design endures long-term machining accuracy and consistency. In addition, 45-degree slant bed design provides operators with convenient access to the workpiece and superb chip discharge.
- Hexahedral design and wide box guideways, machined from one piece casting, promote heavy duty machining.
Induction hardened and precision ground ways ensure accurate machining for extended period of time.
Wide carriage promotes less vibration and allows high precision machining. - High Performance Feed Motor

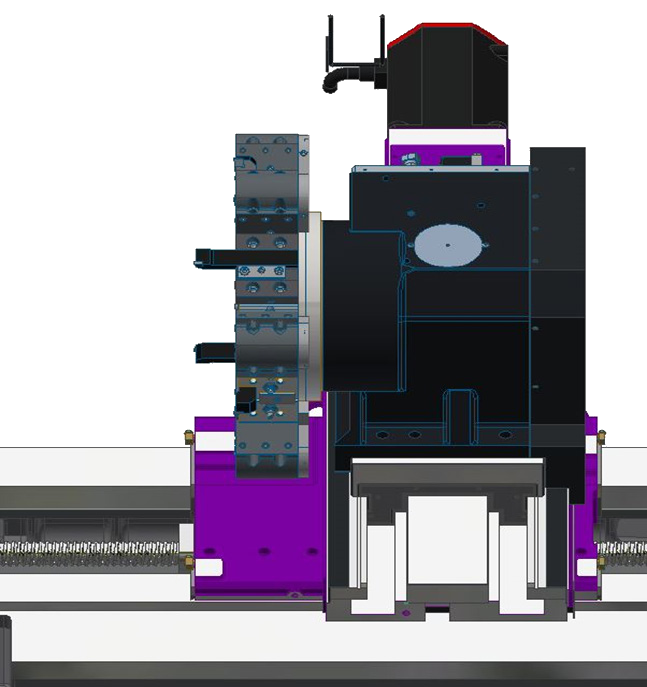

All axes are equipped with high performance feed motor for better travel ability, excellence rapid traverse rate, smooth and precise axis movement. - Pre-tensioned Ballscrews
All axes ballscrews are pre-tensioned, heat treated and fixed by double anchors on both ends, providing ultimate rigidity and minimal thermal growth.

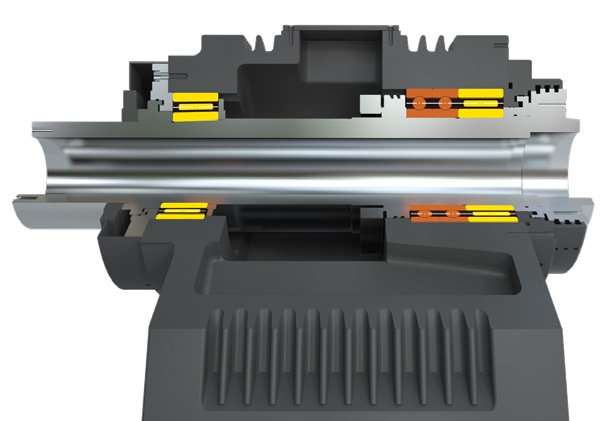

Double row cylindrical roller bearings in the front and back, coupled with angular thrust bearing, ensure high rigidity for heavy cutting and excellent surface finishes.

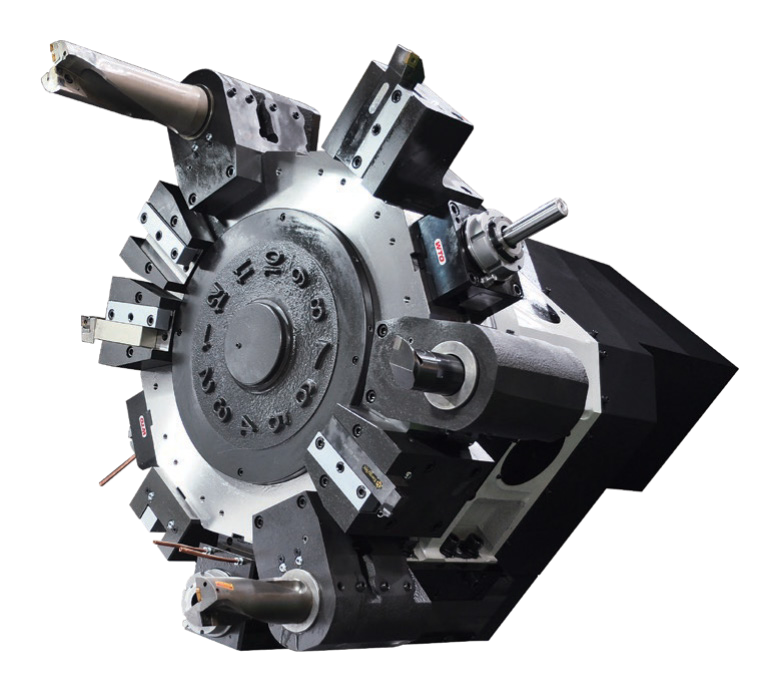

Large diameter 3-piece Curvic coupling for excellence rigidity and extended tool life.
High torque AC servo motor driven ensure fast indexing time, excellence position and repeatability.

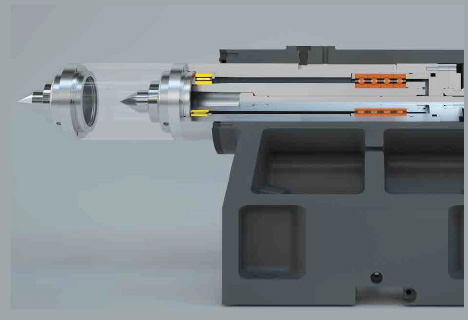

Wide-spaced guideways and heavy-duty tailstock body design ensure machining rigidity, and built in spindle quill design ensures higher rigidity.
NL 6000
■ Quill Type : MT#6
■ Quill Dia : Ø180 mm
■ Quill Travel : 150 mm
