Horizontal Lathes

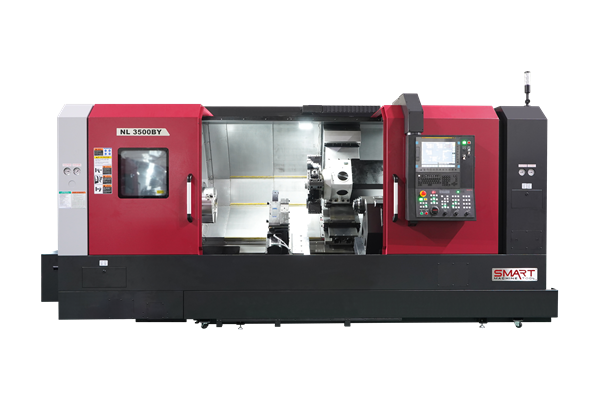

NL 3500 SERIES
Designed by Smart Machine Tool engineers with many years of experience, NL Series turning centers guarantee ultra-high precision, flexible, and reliable machining performance.
- 12” ~ 15” Box way type CNC Turning Center.
- Y-axis enables complex shape machining capability.
- Sub-spindle enables precise machining on the rear side.
- One-piece 30-degree slant bed ensures high rigidity and excellence chip discharge ability.
NL 3500 SERIES
| DESCRIPTION | NL3500B | NL3500BM | NL3500SY | NL3500BSY | NL3500Y | NL3500BY | |
|---|---|---|---|---|---|
| Max. Turning Dia. | mm(inch) | 590 (23.23) | 510 (20.08) | 430 (16.93) | 430 (16.93) |
| Max. Turning Length | mm(inch) | 1,560.5 (61.44) | 1,514.5 (59.63) | 1,500 (59.06) | 1,470 (57.87) | 1,500 (59.06) | 1,470 (57.87) |
| Chuck Size (Main/Sub) | inch | 15 | 15 | 12/10 | 15/10 | 12 | 15 |
| Bar Capacity (Main/Sub) | mm(inch) | 116.5 (4.59) | 116.5 (4.59) | 102/81 (4.02/3.19) | 116.5/81 (4.59/3.19) | 102 (4.02) | 116.5 (4.59) |
| Spindle Speed (Main/Sub) | rpm | 2,000 | 2,000 | 2,800/4,000 | 2,000/4,000 | 2,800 | 2,000 |
| Main Motor (Cont./Max) | KW(HP) | 22/35 (30/47) | 22/35 (30/47) | 18.5/26 (25/35) | 22/30 (30/40) | 18.5/26 (25/35) | 22/30 (30/40) |
| Tailstock | - | Programmable (MT#5 [Built-in]) | Programmable (MT#5 [Built-in]) | - | Programmable (MT#5 [Built-in]) |
| Turret | - | 12 St. | 12 St. (24 pos) BMT65 | 12 St. (24 pos) BMT65 | 12 St. (24 pos) BMT65 |
| Travel (X/Z/Y/B) | mm(inch) | 305/1,570 (12.01/61.81) | 305/1,570 (12.01/61.81) | 295/1,570/130/1,570(11.61/61.81/5.12/61.81) | 295/1,570/130(11.61/61.81/5.12) |

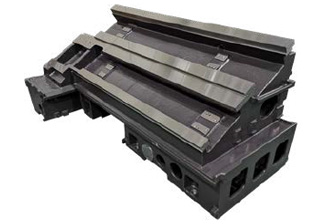

One-piece 30-degree slant bed made out of gray cast iron, which has superb vibration absorption characteristics, provides rigid foundation for all machine components.
Such design endures long-term machining accuracy and consistency.

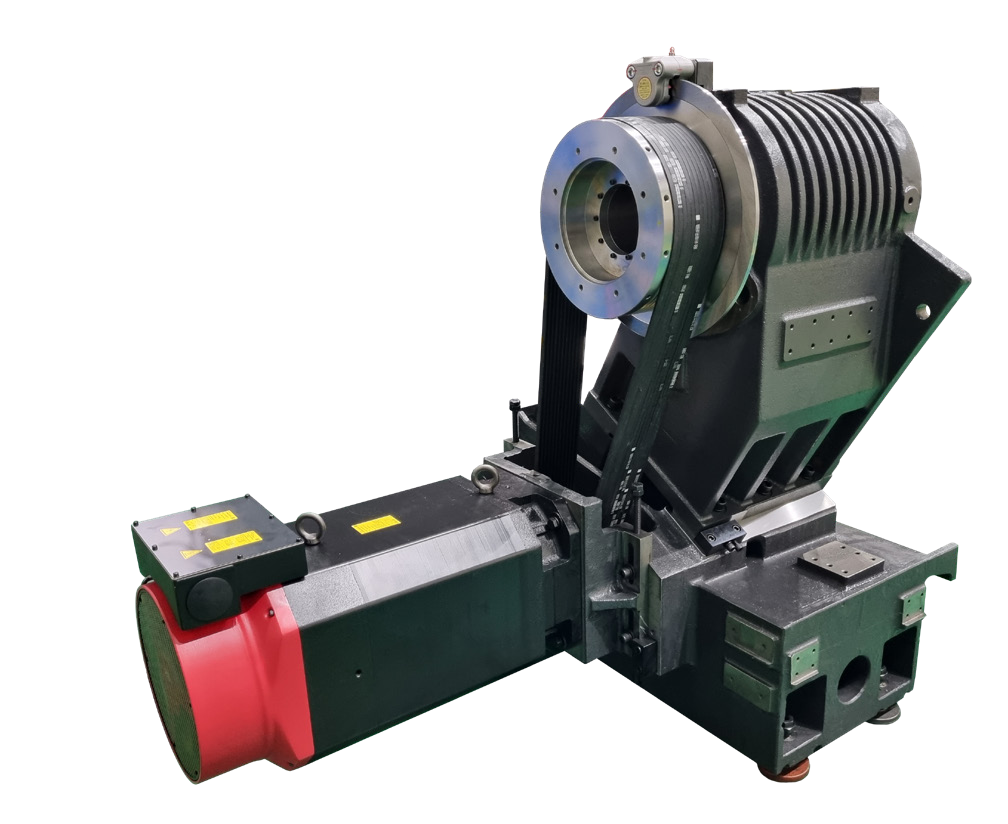

- Heavy-duty headstock machined from one-piece casting. Reinforced with radiator fan-like pin tube rib design dissipates heat generated by axis movements, maintaining minimal thermal expansion

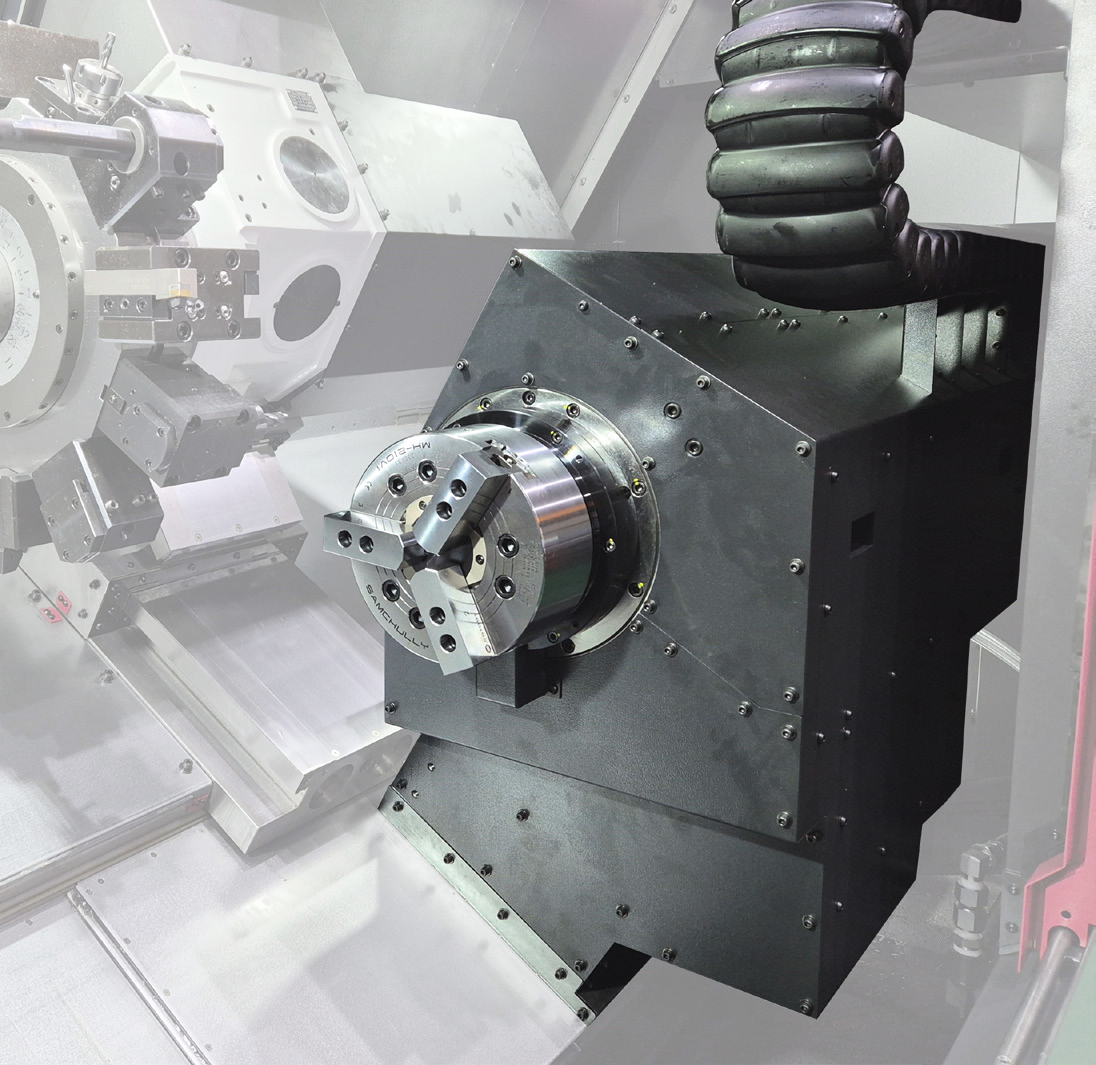

The sub-spindle with full C-axis control enables precise machining on the rear side of the workpiece. Its powerful built-in motor with an oil cooling system delivers fast acceleration, high torque and exceptional precision.

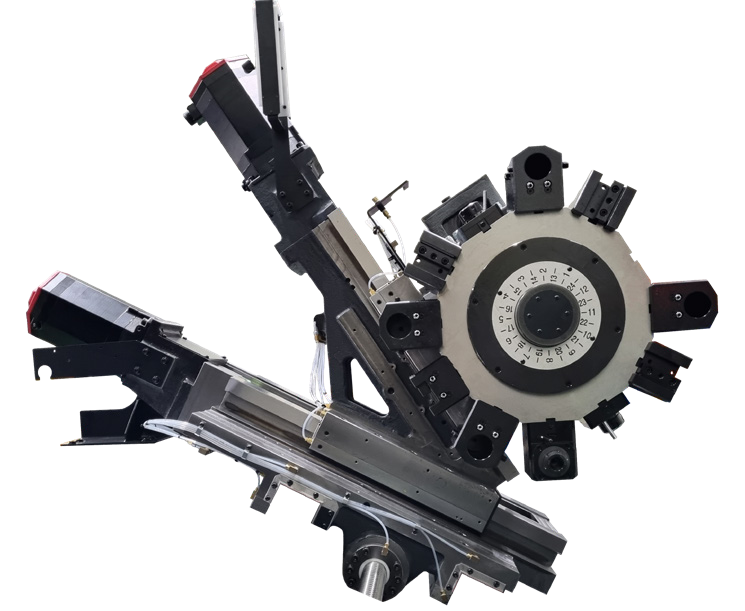

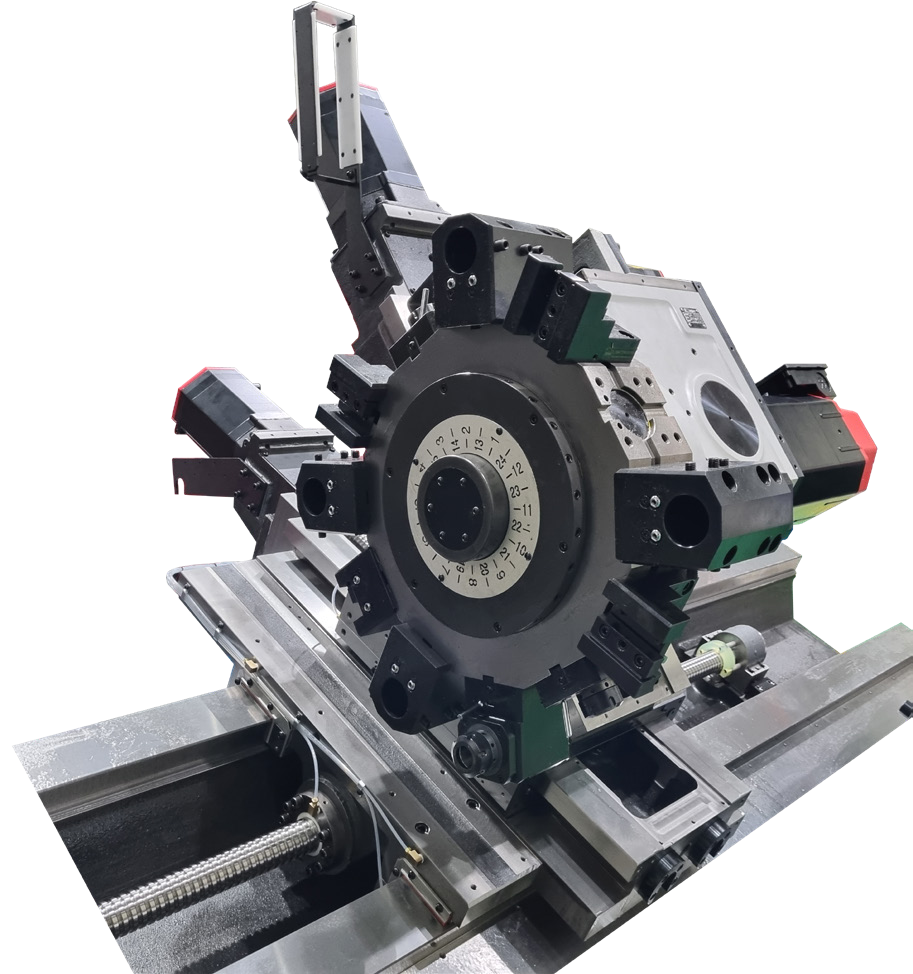

The 12-station turret with 24 index positions (half-indexing) offers increased tool capacity. The turret design incorporates a 245 mm large-diameter Curvic coupling, delivering powerful clamping force of 83.8 kN (18,839 lbf) to ensure high rigidity and enhanced cutting performance.
Programmable tailstock body & quill make easier to adjust tailstock position and minimize setup time. MT#5 built-in live center tailstock provided as standard, ensures superior machining rigidity.

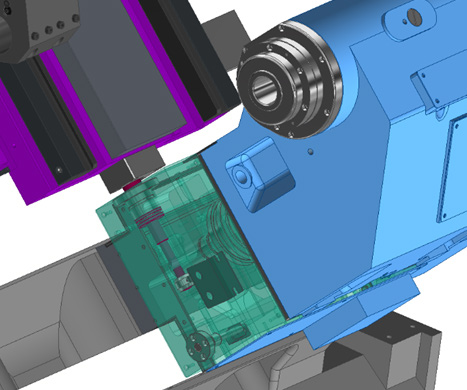

Y-axis allows side milling, off-center drilling and grooving. This result in better machining accuracy and also enable more complex shape machining capability compared to conventional 2 and 3 axis turning center. The simultaneous operation of the X-axis and the Ys-axis creates the Y-axis movement.
