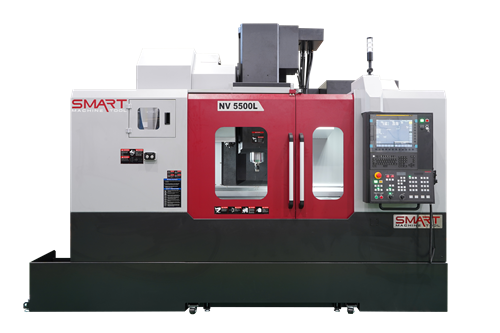

Vertical Machining Center
NV 5500 SERIES
Designed by Smart Machine Tool engineers with many years of experience, NL Series turning centers guarantee ultra-high precision, flexible, and reliable machining performance.
- High Rigidity Body Structure for High Rigid C-frame Design
- Large Table Working Capacity
- Dual Contact Spindle High-Precision & High-Performance
- High Speed ATC Minimize Non-cutting Time, Higher Productivity
- Tool magazine with 30 Tool Slots
NL 5500 SERIES
[ ] : Option
| DESCRIPTION | NL 5500L | NL 5500XL | |
|---|---|---|---|
| Table Size | mm(inch) | 1,600x590 (62.99x23.23) | 1,800x590 (70.87x23.23) |
| Max. Load Capacity | kg(lb) | 1,000 (2,204.6) | 1,200 (2,645.5) |
| Spindle Taper | - | BBT40 [CAT40] | BBT40 [CAT40] |
| Spindle Speed | rpm | 12,000 [15,000] | 12,000 [15,000] |
| Spindle Motor (Cont./Max) | kW(HP) | 11/18.5 (15/25) | 11/18.5 (15/25) |
| No. of Tool Magazine | ea | 30 [50] | 30 [50] |
| Travel (X/Y/Z) | mm(inch) | 1,400/570/510 (55.12/22.4/20.1) | 1,800/570/510 (70.87/22.4/20.1) |
| Rapid Traverse (X/Y/Z) | m/min(ipm) | 36/36/30 (1,417/1,417/1,181) | 36/36/30 (1,417/1,417/1,181) |

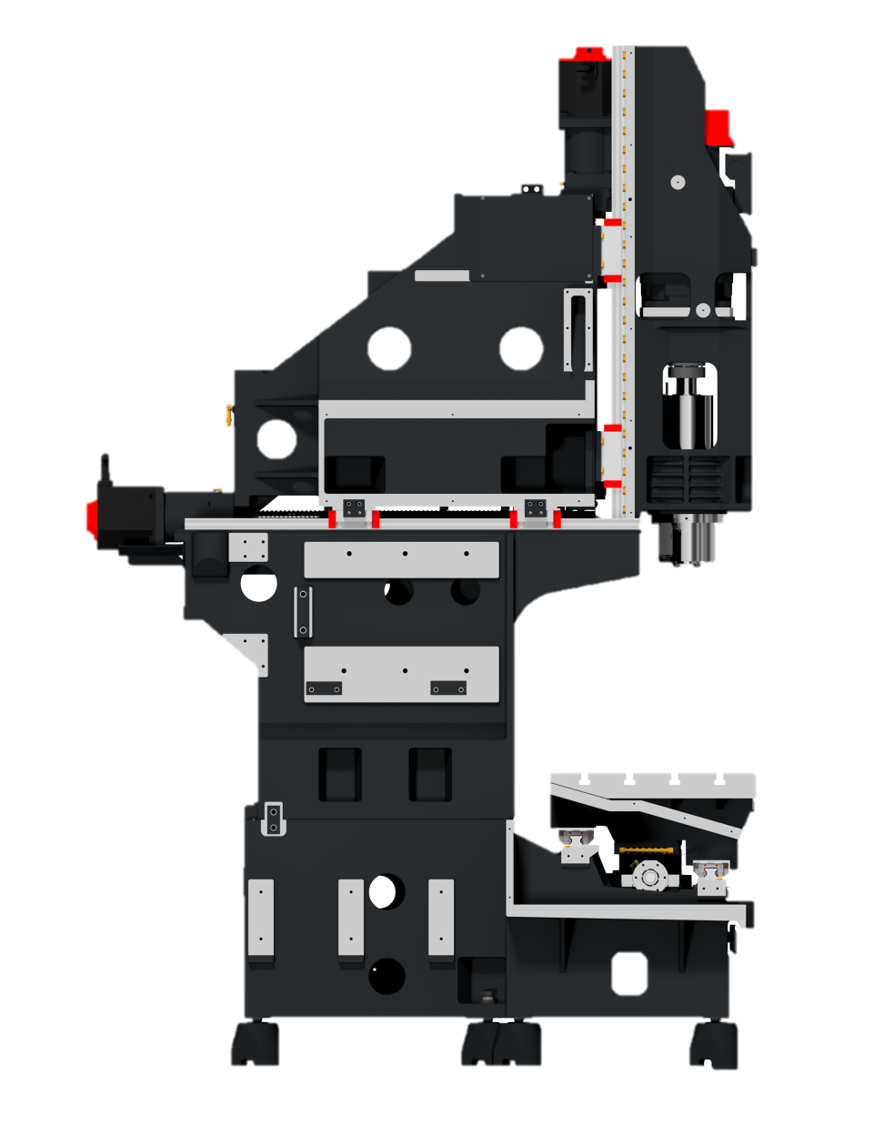

High rigidity base and extended casting column support structure design for high machining stability.
No stacking axis for table, the table only moves in X-axis prevent table overhang problem allowing higher stability of table movement and better machining quality result.
High rigid roller type LM guideways are applied for all the axis feed, ensure high rigidity, high accuracy and speed of axis movement and also improve load capacity.
6 LM blocks on X-axis enhance machining rigidity and stability

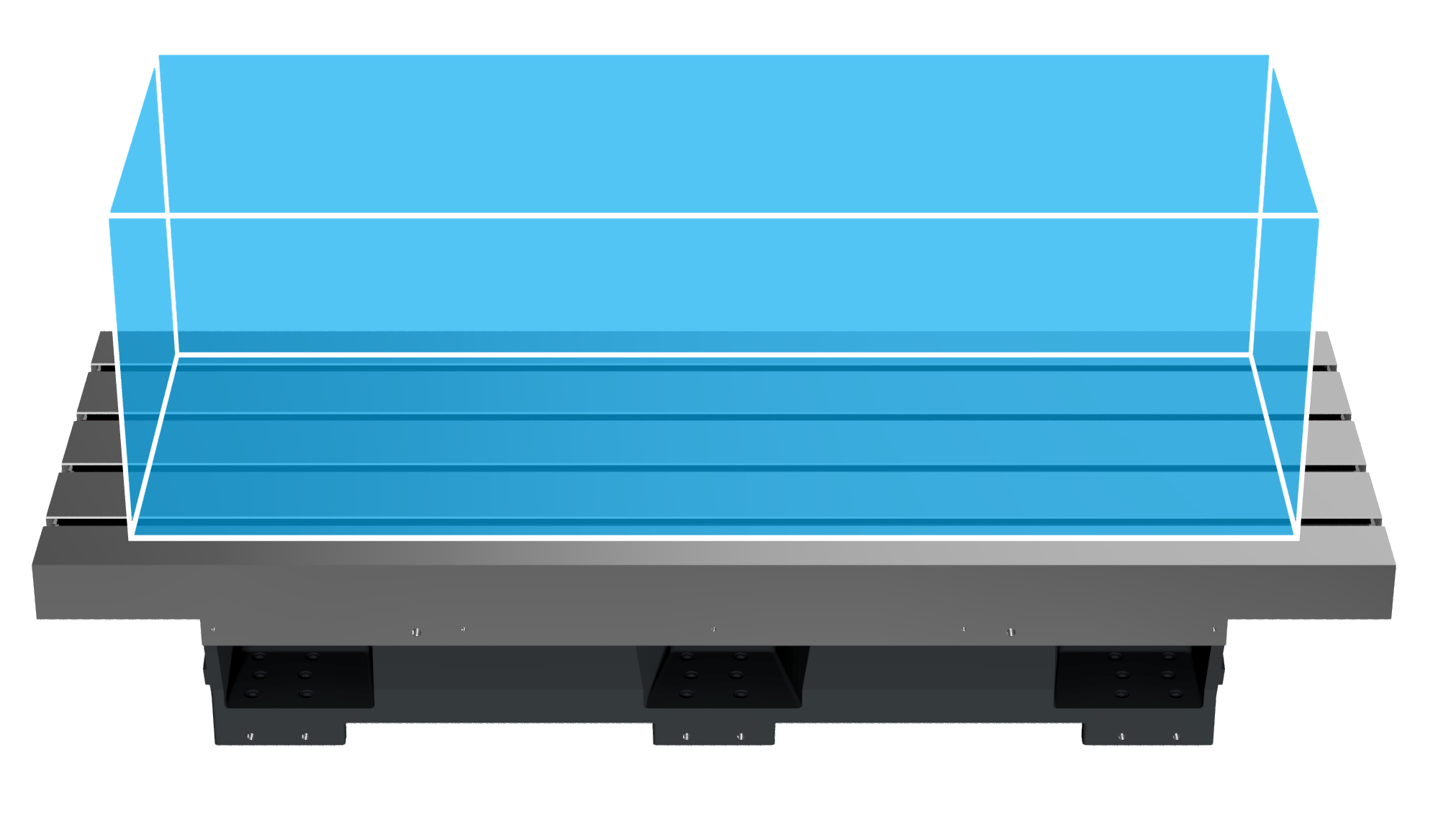

Large working capacity
NV5500 series have wider workpiece mounting area compared to competitive machines within the same floor space.
Table Size (X x Y)
NV5500L 1,600 x 590 mm (62.99” x 23.23”)
NV5500XL 1,800 x 590 mm (70.87” x 23.23”)
Max. Load Capacity
NV5500L 1,000 kg 2,204.6 lb
NV5500XL 1,200 kg 2,645.5 lb

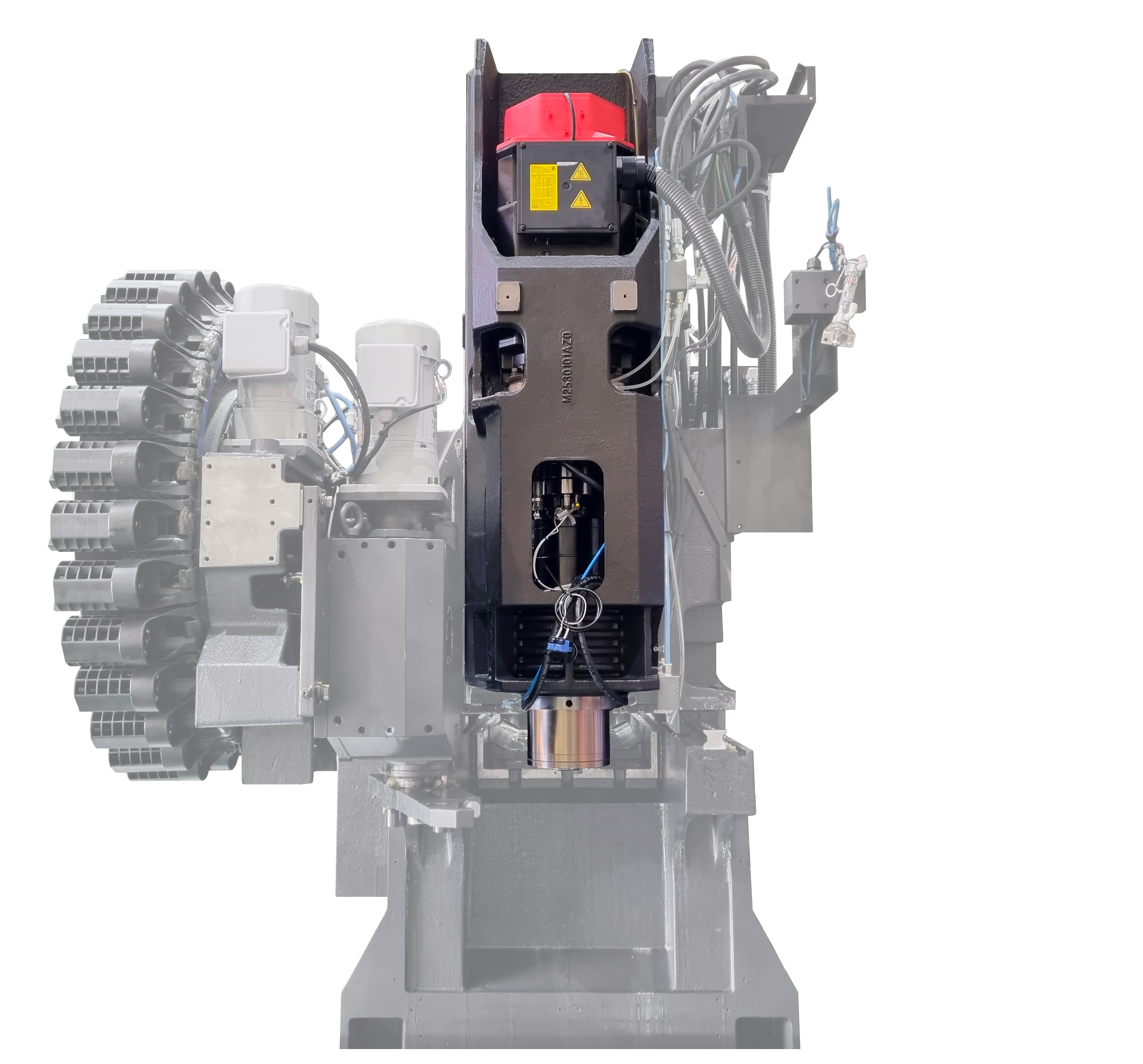

Direct Drive Spindle
NV Series machines are equipped with a high-performance, directly coupled spindle, with a maximum speed of 12,000 rpm as standard feature, allows high-speed processing with low vibration and noise, increase machining accuracy and quality.
Max. Spindle Speed
12,000 rpm
Max. Spindle Output
18.5 kW [24.8 Hp]
Max. Spindle Torque
117.8 N.m [86.9 ft.lbf]

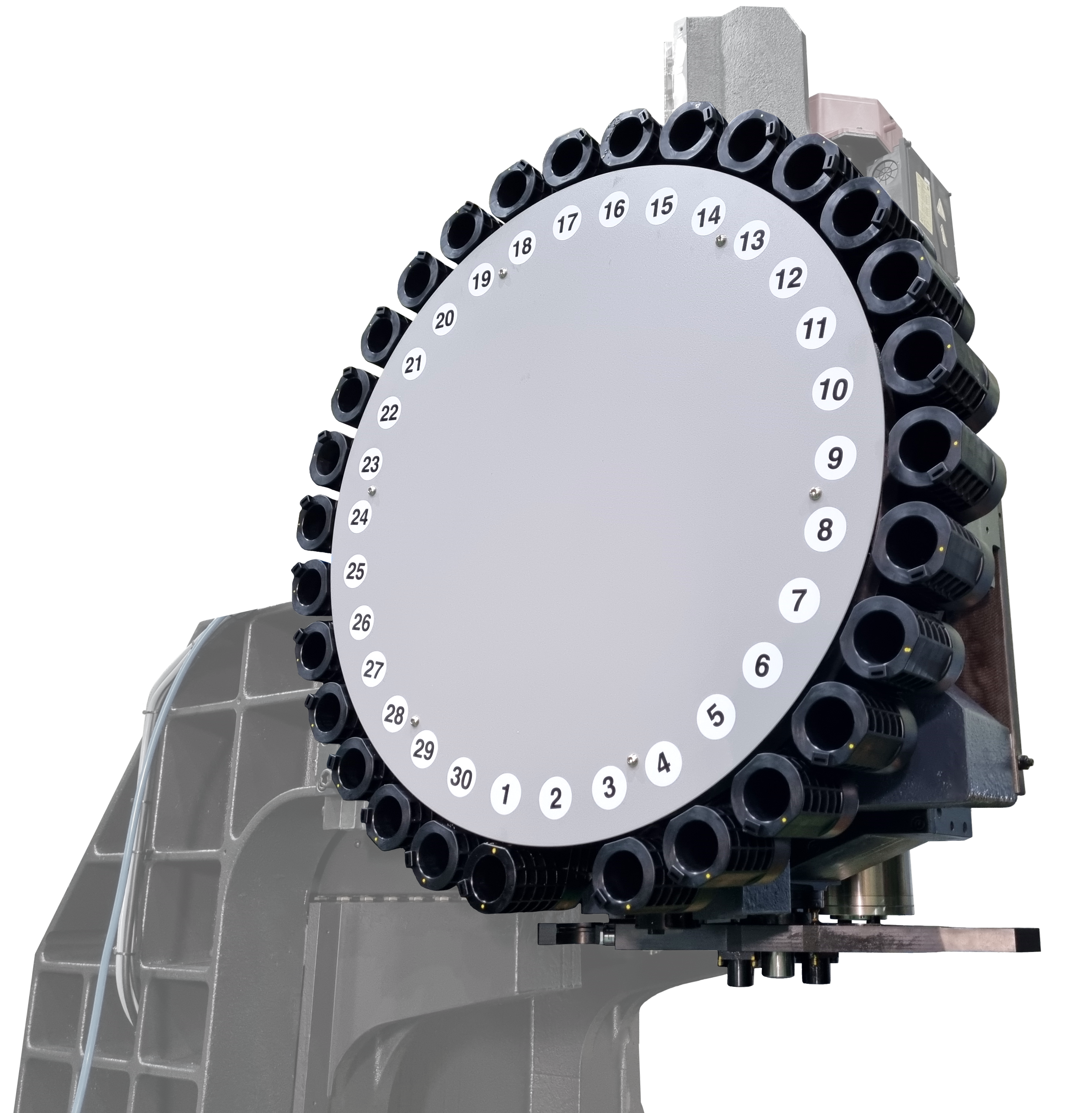

Tool Magazine
Highly reliable tool magazine holds up to 30 tools as standard to cover a wide range of tools selection ensure flexible machining conditions.
The moving system is designed for shortest distance to improve tool change time.
Tool to Tool Time
2.5 Sec
Chip to Chip time
4.3 Sec
Tool Storage Capacity
30 ea [50 ea]
