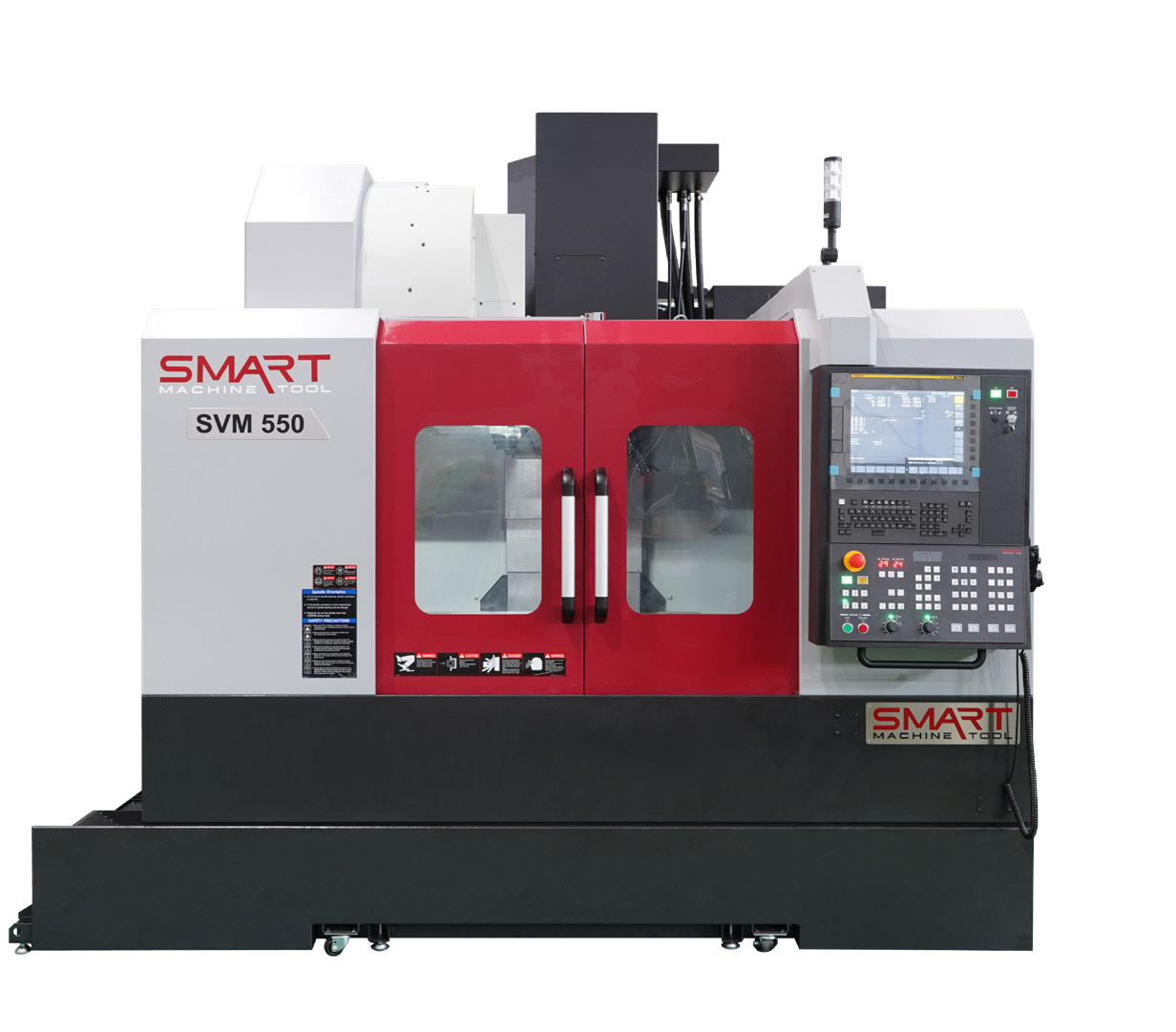

Vertical Machining Center
SVM SERIES
Designed by Smart Machine Tool engineers with many years of experience, NL Series turning centers guarantee ultra-high precision, flexible, and reliable machining performance.
- High-rigidity roller-type LM guideways for all axis feeds.
- Comfact size structure with excellence work accessibility.
- Automatic grease lubrication system reduces maintenance cost and time compared to oil lubrication
SVM SERIES
[ ] : Option
| DESCRIPTION | SVM 550 | SVM 550L | SVM 650 | SVM 650L | |
|---|---|---|---|---|---|
| Table Size | mm(inch) | 1,000×550 (39.37×21.65) | 1,200×550 (47.24×21.65) | 1,200×650 (47.24×25.59) | 1,600×650 (62.99×25.59) |
| Max. Load Capacity | kg(lb) | 600 (1,323) | 800 (1,764) | 900 (1,984) | 1,200 (2,646) |
| Spindle Taper | - | BBT40 [CAT40] | BBT40 [CAT40] | BBT40 [CAT40] | BBT40 [CAT40] |
| Spindle Speed | rpm | 12,000 | 12,000 | 12,000 | 12,000 |
| Spindle Motor (Cont./Max) | kW(HP) | 11/18.5 (15/25) | 11/18.5 (15/25) | 11/18.5 (15/25) | 11/18.5 (15/25) |
| No. of Tool Magazine | ea | 30 | 30 | 30 | 30 |
| Travel (X/Y/Z) | mm(inch) | 850/550/550 (33.46/21.65/21.65) |
1,000/550/550 (39.37/21.65/21.65) |
1,200/670/600 (47.24/26.38/23.62) |
1,500/670/600 (59.06/26.38/23.62) |
| Rapid Traverse (X/Y/Z) | m/min(ipm) | 36/36/36 (1,417/1,417/1,417) |
36/36/36 (1,417/1,417/1,417) |
36/36/36 (1,417/1,417/1,417) |
36/36/36 (1,417/1,417/1,417) |

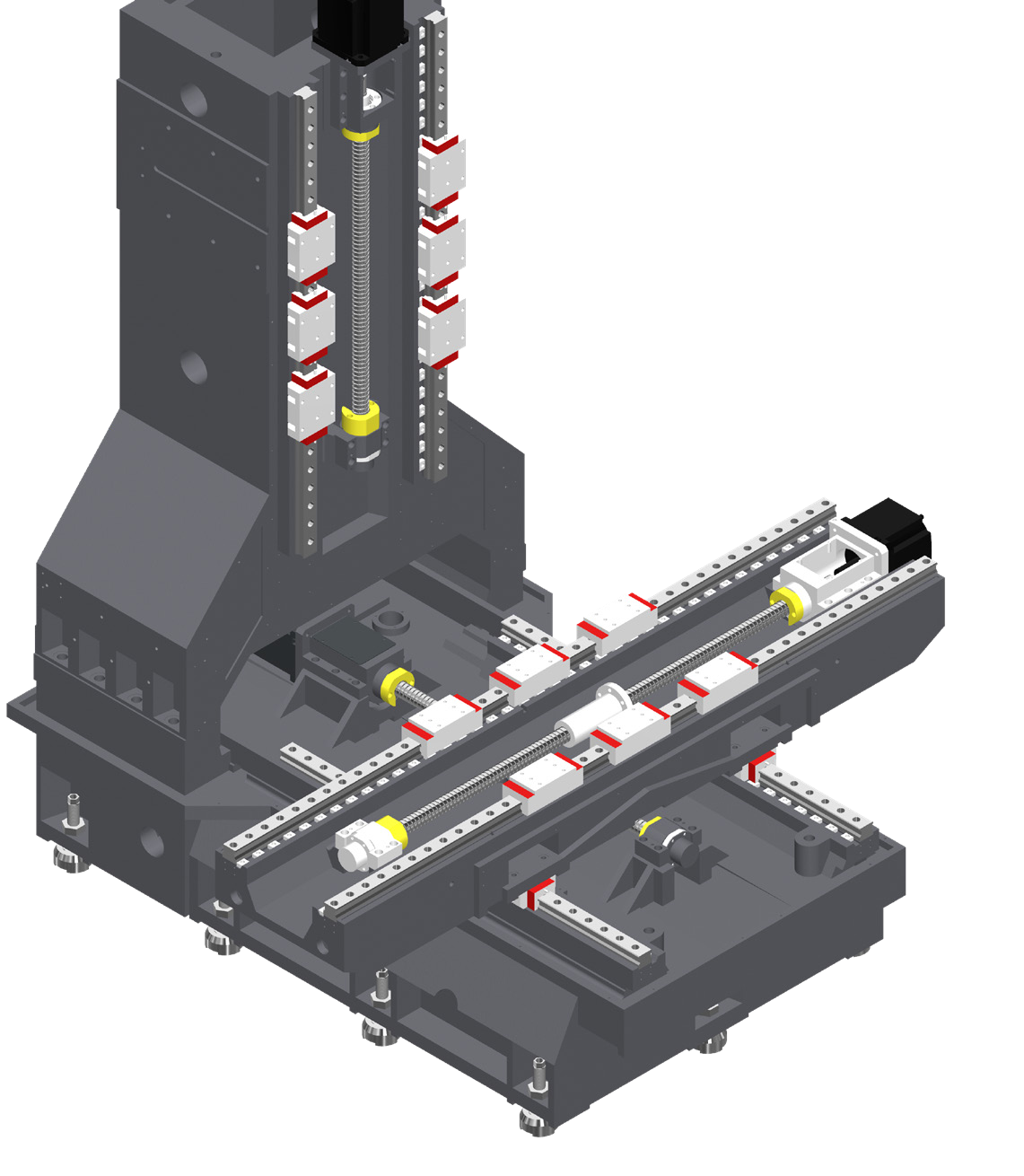

High-rigidity roller-type LM guideways are applied to all axis feeds, ensuring superior rigidity, high accuracy, and fast axis movement while also enhancing load capacity.
Additional LM blocks mounted on the X-axis and Z-axis enhance machining rigidity and stability.

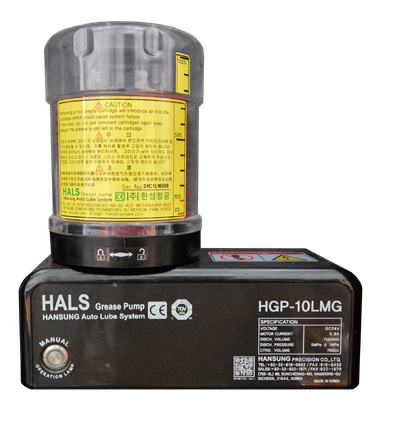

The standard grease lubrication reduces maintenance time and cost compared
to oil lubrication. Since no lubrication oil mixes into the coolant tank, coolant life is significantly extended, eliminates the need for an oil skimmer.

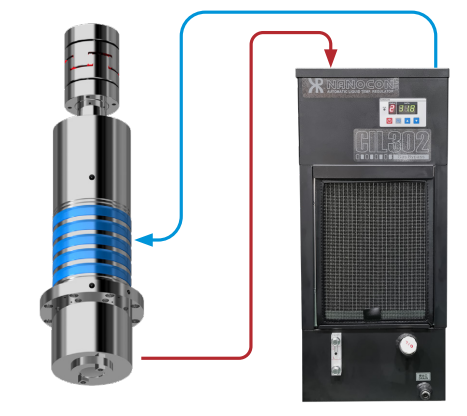

The Spindle cooling system minimizes thermal displacement, ensure maximum machining accuracy even during a long period of machining.
